Screening & Backtesting / 2 / Create Signals from a Measure
When ready, click NEXT >> to continue to the next section of the Guide
ℹ️ Clicking on image thumbnails below enlarges all screenshots.
Steps Shown in the Video
Open the Measure Trace Study and Add SPY to the Chart
Open the measure trace backtest you created in Guide 1 (the one that tracks Medium-Term GEX/Volume Ratio for SPY over the past year).
In the chart view, click the “Add Series” search bar at the top (or click the little “+ Series” bubble on the chart > Market Data).
Type SPY → select SPY (market data / price) → click Add.
A dialog appears:
Panel: choose Top (so it doesn’t overlap the GEX trace)
Click Apply
You can now visually see that positive GEX periods generally have lower volatility and smoother trends in SPY.
2. Manually Create Signals on the Chart (Quick Method)
Click the + Signal icon.
The cursor turns into a crosshair — Signal Trace mode is now active.
Click on the chart at various points.
After placing the signals, click Accept and a dialog pops up:
Name your Signal
Color: choose any color you like
Click Apply

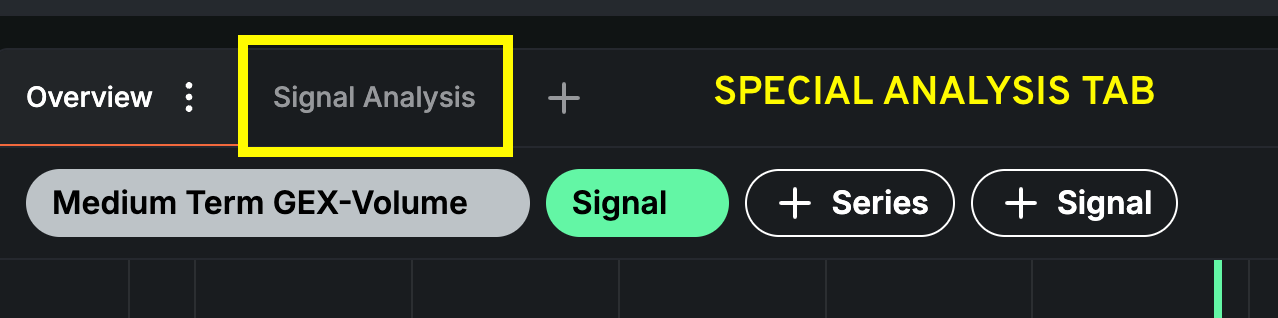

Go to the Signal Analysis tab (top of the screen).
In the Signal / Benchmark dropdowns:
Signal → select your signal
Benchmark → select SPY (needs to be added to Market Study first)

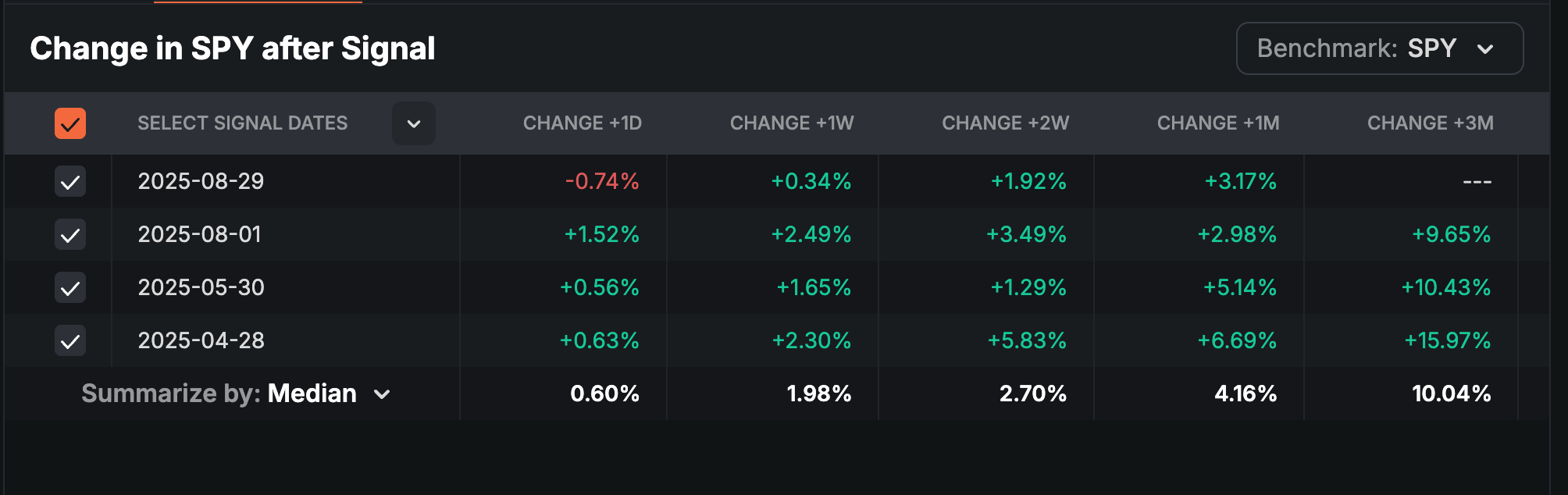

Table of average/median returns, % positive gets generated.
This works, but it’s manual. Let’s make it fully automatic!
3. Create Fully Automatic Signals from the Screener (Recommended Method)
Goal: Generate signals automatically whenever Medium-Term GEX/Volume > 0.
Go back to the Stock Screener exactly as you left it in Guide 1 (only SPY selected, Medium-Term GEX/Volume column present but not filtered).
Click Launch Backtest → Launch Measure Trace Backtest (same as before).
Step through the wizard exactly as before until you reach the Technical Analysis page:
Previous steps (Universe = Static, Metric = Medium Term GEX to Volume Ratio, Aggregation = Average) → click Next until you reach Technical Analysis.
On the Technical Analysis page:
Click Add Technical Analysis
Choose “Copy of Primary Metric” (this duplicates the GEX series so we can apply rules to it)
Toggle Signal Generation ON
Now set the signal rule:
Condition: Primary Metric Above Threshold
Threshold value: 0 (zero)
Signal name: Positive Gamma Regime
Click Next
Final page:
Backtest name: e.g., “SPY – Positive Gamma Regime”
Date range: Last 1 year (or same as before)
Click Confirm and Launch
4. Clean Up and View the Final Chart
Once the backtest finishes:
You will see two series:
The original GEX/Volume line
Vertical lines wherever GEX was > 0 (your automatic signals)Add SPY price again (same as Guide 1):
Search → SPY → add to Main pane
Customize for clarity (exactly as in the video):
Click the GEX series → change style to Histogram → move to Bottom panel → color white or light gray
Click the signal series → make it bright green, slightly transparent
Keep SPY price on the main panel with right-scale enabled
Go to the Signal Analysis tab:
Signal → select Positive Medium-Term Gamma Regime
Benchmark → SPY
You now have real, repeatable statistics for the regime.
Done! You now have a fully automated, backtestable “Positive Gamma Regime” signal that requires zero manual clicking ever again. Click “Run Every Day” to keep the study updated whenever new data becomes available.
